90755 | HELUKABEL

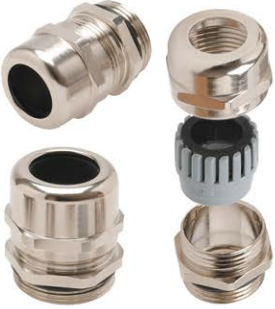

Cable gland, PG21, 30 mm, Clamping range 13 to 18 mm, IP66/IP68, 90755

Order No.: 12H8632
EAN: 4060892351037
MPN:
90755
Series: HELUTOP HT-MS
90755 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
5.0575 € *
Available: 0 pcs.
Available in 5 Days: 750 pcs.
Leadtime: 6 Weeks **
Total Price:
126.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
5.0575 €

Cable gland, 90755, HELUKABEL

The 90755 cable gland has an optimum strain relief through clamping lamella. This product is easy to assemble, time and cost savings.

Features

  • Watertight, dust-tight
  • Große Klemmbereiche

Applications

  • Machine and plant construction
  • Robotics
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Version Kabelverschraubung
Thread size PG21
Material Messing, vernickelt
max. clamping range 18 mm
max. operating temperature 100 °C
min. clamping range 13 mm
min. operating temperature -20 °C
spanner size 30 mm
Degree of protection (IP) IP66/IP68
Logistics
Customs tariff number 74122000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
