90760 | HELUKABEL
Cable gland, M12, 14 mm, Clamping range 3 to 6.5 mm, IP66/IP68, 90760
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Leadtime: On Request **

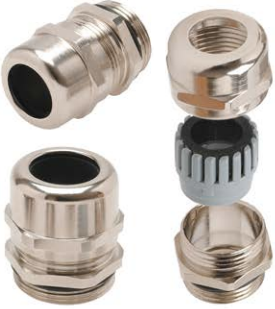

Cable gland, 90760, HELUKABEL
The 90760 cable gland has an optimum strain relief through clamping lamella. This product is easy to assemble, time and cost savings.
Features
- Watertight, dust-tight
- Große Klemmbereiche
Applications
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Ausführung | Kabelverschraubung | |
| Gewindegröße | M12 | |
| Material | Messing, vernickelt | |
| max. Klemmbereich | 6.5 mm | |
| max. Temperatur | 100 °C | |
| min. Klemmbereich | 3 mm | |
| min. Temperatur | -20 °C | |
| Schlüsselweite | 14 mm | |
| Schutzart (IP) | IP66/IP68 |
Download
Logistics
| Zolltarifnummer | 74122000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
