90762 | HELUKABEL
Cable gland, M20, 22 mm, Clamping range 6 to 12 mm, IP66/IP68, 90762
Unit Price (€ / pc.)
2.7965 € *
Available: 0 pcs.
Leadtime: On Request **

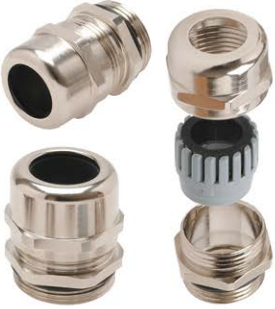

Cable gland, 90762, HELUKABEL
The 90762 cable gland has an optimum strain relief through clamping lamella. This product is easy to assemble, time and cost savings.
Features
- Watertight, dust-tight
- Große Klemmbereiche
Applications
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Version | cable gland | |
| Thread size | M20 | |
| Material | brass, nickel-plated | |
| max. clamping range | 12 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 6 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 22 mm | |
| Degree of protection (IP) | IP66/IP68 |
Download
Logistics
| Customs tariff number | 74122000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
