93869 | HELUKABEL

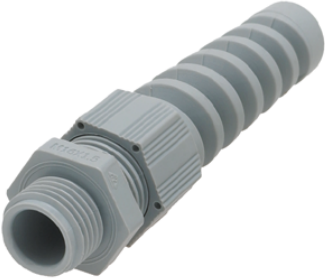

Cable gland, M20, 24 mm, Clamping range 6 to 12 mm, IP66/IP68, light gray, 93869
Unit Price (€ / pc.)
0.8449 € *
Available: 0 pcs.
Leadtime: On Request **
Cable gland, 93869, HELUKABEL
The 93869 cable gland has an optimum strain relief through clamping lamella. This product is easy to assemble, time and cost savings.
Features
- Phosphor-free
- Silicone-free
- Cadmium-free
- Watertight, dust-tight
- Große Klemmbereiche
- With anti-kink spiral for mobile use
Applications
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
Technical specifications
| Ausführung | Kabelverschraubung | |
| Farbe | hellgrau | |
| Gewindegröße | M20 | |
| Material | PA | |
| max. Klemmbereich | 12 mm | |
| max. Temperatur | 100 °C | |
| min. Klemmbereich | 6 mm | |
| min. Temperatur | -20 °C | |
| Schlüsselweite | 24 mm | |
| Schutzart (IP) | IP66/IP68 |
Download
Logistics
| Zolltarifnummer | 39174000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
