94534 | HELUKABEL
Cable gland, M32, 42 mm, Clamping range 18 to 25 mm, IP66/IP68, light gray, 94534
Unit Price (€ / pc.)
1.8802 € *
Available: 0 pcs.
Leadtime: On Request **

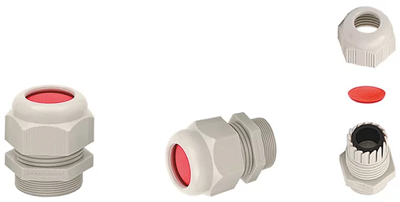

Cable gland, 94534, HELUKABEL
PA plastic cable gland, Cadmium-free, Dust protection, Protection class IP 68.
Features
- Phosphor-free
- Silicone-free
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Version | cable gland | |
| Colour | light gray | |
| Thread size | M32 | |
| Material | PA | |
| max. clamping range | 25 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 18 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 42 mm | |
| Degree of protection (IP) | IP66/IP68 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
