98045 | HELUKABEL
Cable gland, Ex, M12, 14 mm, Clamping range 3 to 6.5 mm, IP68/IP69K, metal, 98045
Unit Price (€ / pc.)
9.1392 € *
Available: 0 pcs.
Available in 5 Days: 550 pcs.
Leadtime: 6 Weeks **

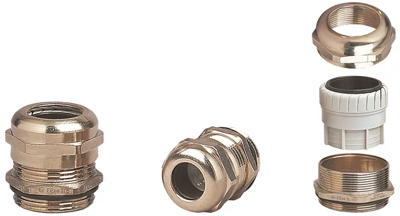

Cable gland, 98045, HELUKABEL
Nickel plated brass EX cable gland, Temperature range -20°C to +95°C, Protection class IP 68 - 10 bar / IP 69K.
Features
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Large clamping areas
Applications
- Machine and plant construction
- Automation technology
- Control cabinet construction
- Installation technology
Technical specifications
| Version | Ex | |
| Colour | metall | |
| Thread size | M12 | |
| Material | Messing, vernickelt | |
| max. clamping range | 6.5 mm | |
| max. operating temperature | 95 °C | |
| min. clamping range | 3 mm | |
| min. operating temperature | -20 °C | |
| Product type | Kabelverschraubung | |
| spanner size | 14 mm | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
