98089 | HELUKABEL

Cable gland, M16, 15 mm, Clamping range 8 to 10 mm, IP54, metal, 98089

Order No.: 93F8887
EAN: 4060892369841
MPN:
98089
Series: STR
HELUKABEL
98089 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
1.4399 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
1.4399 €

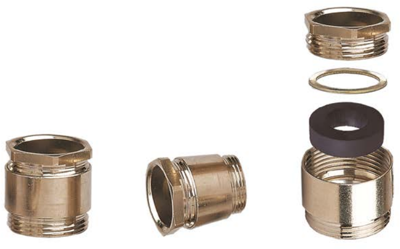

Cable gland, 98089, HELUKABEL

Nickel plated round brass cable gland acc. to DIN 46320, Temperature range -30°C to +90°C, Protection class IP 54.

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Version cable gland
Colour metal
Thread size M16
Material brass, nickel-plated
max. clamping range 10 mm
max. operating temperature 90 °C
min. clamping range 8 mm
min. operating temperature -30 °C
spanner size 15 mm
Degree of protection (IP) IP54
Logistics
Customs tariff number 74122000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
