98102 | HELUKABEL
Cable gland, M20, 24 mm, Clamping range 12 to 14 mm, IP54, metal, 98102
Unit Price (€ / pc.)
2.2253 € *
Available: 0 pcs.
Leadtime: On Request **
Cable gland, 98102, HELUKABEL

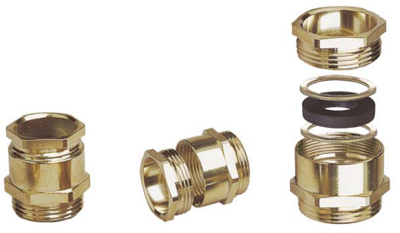

Nickel plated hexagonal brass cable gland acc. to DIN 46320, Temperature range -20°C to +60°C, Protection class IP 54.
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Version | cable gland | |
| Colour | metal | |
| Thread size | M20 | |
| Material | brass, nickel-plated | |
| max. clamping range | 14 mm | |
| max. operating temperature | 60 °C | |
| min. clamping range | 12 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 24 mm | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Customs tariff number | 74122000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
