99213 | HELUKABEL
Cable gland, PG21, 30 mm, Clamping range 9 to 16 mm, IP68/IP69K, 99213
Unit Price (€ / pc.)
15.4819 € *
Available: 0 pcs.
Leadtime: On Request **

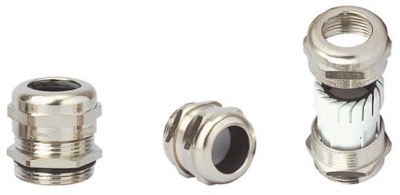

Cable gland, 99213, HELUKABEL
Nickel plated brass cable gland for high performance applications.
Features
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Version | cable gland | |
| Thread size | PG21 | |
| Material | brass, nickel-plated | |
| max. clamping range | 16 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 9 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 30 mm | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
