99631 | HELUKABEL
Cable gland, M16, 19 mm, Clamping range 2 to 6 mm, IP68/IP69K, natural, 99631
Unit Price (€ / pc.)
5.3788 € *
Available: 0 pcs.
Leadtime: On Request **
Cable gland, 99631, HELUKABEL
The 99631 is a PVDF cable gland for use in the chemical industry, at high temperatures, under longterm UV exposure. The cable gland to meet stringent requirements in technology.
Features
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Watertight, dust-tight
- Large clamping areas
- Large temperature range

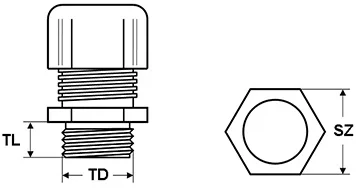

Technical specifications
| Version | cable gland | |
| Colour | natural | |
| Thread size | M16 | |
| Material | PVDF | |
| max. clamping range | 6 mm | |
| max. operating temperature | 150 °C | |
| min. clamping range | 2 mm | |
| min. operating temperature | -35 °C | |
| spanner size | 19 mm | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
