920360 | HELUKABEL
Tubing holders, NW37, (W x H) 55 x 56.5 mm, PA, black, for protective hoses HELUcond CO, 920360
Unit Price (€ / pc.)
3.7842 € *
Available: 0 pcs.
Leadtime: On Request **

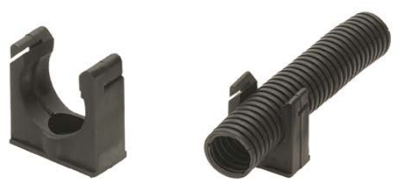

Tubes holder, 920360, HELUKABEL
Tube holder for dividible HELUcond CO protection tube. Quick fastening with integrated rib, which also fixes the protection tube in an axial direction.
Features
- Halogen-free
- Cadmium-free
- Resistant to: fuels, mineral oils, greases, weak bases, weak acids
Applications
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Ausführung | NW37 | |
| Breite | 55 mm | |
| Farbe | schwarz | |
| Geeignet für | Schutzschläuche HELUcond CO | |
| Höhe | 56.5 mm | |
| Material | PA | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -30 °C | |
| Zubehörart | Schlauchhalter |
Download
Logistics
| Zolltarifnummer | 39174000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
