40012 | HELUKABEL

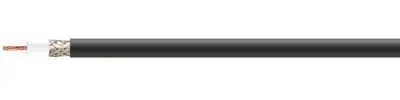

Coaxial cable RG 213 U
Unit Price (€ / mtr.)
3.1773 € *
Available: 0 mtr.
Leadtime: On Request **
Coaxial cable, 40012, HELUKABEL
Coaxial cable is used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The varied mechanical, thermal and electronic properties of Coaxial cable mean that they can be used up into the GHz levels, as per cable type.
Technical specifications
| Outer diameter | 10.3 mm | |
| Dielectric material | PE | |
| Dielectric diameter | 7.24 mm | |
| Colour | black | |
| Impedance | 50 Ω | |
| Capicity/m | 101 pF/m | |
| Cable structure | 7 x 0.8 mm | |
| Cable material | copper, bright | |
| Material | PVC | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -35 °C | |
| Shielding | shielded |
Download
Logistics
| Customs tariff number | 85442000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
