12009 | HELUKABEL
PVC control line SY-JZ 18 G 0.5 mm², AWG 20, shielded, transparent, 12009
Unit Price (€ / mtr.)
5.6882 € *
Available: 0 mtr.
Leadtime: On Request **

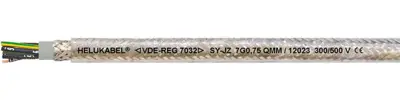

Control cable, 12009, HELUKABEL
This is used as a connection and control cable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use in machine tools, plant construction and data technology. Due to the dense braiding, the cable is well protected against mechanical damage. The galvanisation of the braid prevents corrosion and guarantees improved solderability of the braid.
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | black | |
| Number of cores | 18 | |
| Version | control line | |
| Outer diameter | 13.7 mm | |
| AWG cross-section | AWG 20 | |
| Colour | transparent | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 4 kV | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -15 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
