12080 | HELUKABEL

PVC control line SY-JZ 5 G 2.5 mm², AWG 14, shielded, transparent, 12080

Order No.: 93F6937
EAN: 4060892034909
MPN:
12080
Series: SY-JZ
HELUKABEL
12080 HELUKABEL Control Cables

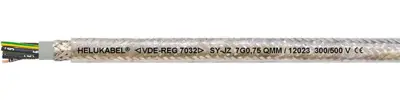

Image may differ
Unit Price (€ / mtr.)
6.2356 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
6.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
6.2356 €

Control cable, 12080, HELUKABEL

This is used as a connection and control cable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use in machine tools, plant construction and data technology. Due to the dense braiding, the cable is well protected against mechanical damage. The galvanisation of the braid prevents corrosion and guarantees improved solderability of the braid.

Technical specifications
Core insulation material PVC
Core colour sequence black
Number of cores 5
Version control line
Outer diameter 13.3 mm
AWG cross-section AWG 14
Colour transparent
Halogen free No
Conductor category CL.5 = fine stranded
Cable material copper, bright
Cable cross-section 2.5 mm²
Material PVC
Rated voltage 500 V
Rated voltage U0 300 V
Test voltage 4 kV
Shielding shielded
Drag chain suitable No
Protective conductor available Yes
Temperature range (active) -15 °C to 80 °C
Temperature range (unmoved) -40 °C to 80 °C
Logistics
Customs tariff number 85444995
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
