12510 | HELUKABEL

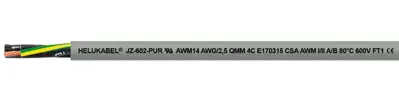

PUR control line JZ-602-PUR 7 G 2.5 mm², AWG 14, unshielded, gray, 12510
Unit Price (€ / mtr.)
11.662 € *
Available: 0 mtr.
Leadtime: On Request **
Connection cable, 12510, HELUKABEL
UL and CSA approved flexible control cable rated at 600 V, primarily designed for exporters to the US or Canadian market. Used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment. Suitable for installation in dry, moist, wet and outdoor environment and moderate flexing applications.
Features
- Resistant to oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater
- Highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
- For outdoor use
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 7 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 11.6 mm | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | PUR | |
| Nennspannung UL/CSA | 600 V | |
| Prüfspannung | 3 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
