12756 | HELUKABEL

Polymer connection line JZ-600 HMH 12 G 1.0 mm², AWG 18, unshielded, black, 12756

Order No.: 93F9383
EAN: 4060892049132
MPN:
12756
Series: JZ-600 HMH
HELUKABEL
12756 HELUKABEL Control Cables

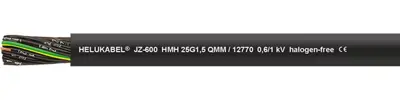

Image may differ
Unit Price (€ / mtr.)
5.8429 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
5.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
5.8429 €

Connection cable, 12756, HELUKABEL

The 12756 is a connection cable in tool machinery, conveyor belts, production lines, plant construction, in air-conditioning devices, in metallurgical, steel and rolling mills. For fixed installation and flexible applications with occasional, not constantly recurring free movement without forced motion, without tensile stress and for medium mechanical stress. The cable is suitable for use in dry, damp and wet locations, outdoors (fixed installation) and on plaster.

Features

  • Highly flame-retardant
  • Resistant to UV radiation, weathering effects
  • Largely oil resistant
  • For outdoor use
  • Halogen-free
Technical specifications
Core insulation material polymer
Number of cores 12
Version control line
Outer diameter 13.2 mm
AWG cross-section AWG 18
Colour black
Halogen free Yes
Conductor category CL.5 = fine stranded
Cable material copper, bright
Cable cross-section 1.0 mm²
Material polymer
Rated voltage 1 kV
Rated voltage U0 600 V
Test voltage 4 kV
Shielding unshielded
Drag chain suitable No
Protective conductor available Yes
Temperature range (active) -25 °C to 70 °C
Temperature range (unmoved) -40 °C to 70 °C
Logistics
Customs tariff number 85444995
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
