13436 | HELUKABEL

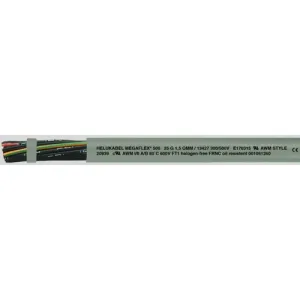

Polymer control line MEGAFLEX 500 5 G 2.5 mm², AWG 14, unshielded, gray, 13436
Unit Price (€ / mtr.)
7.8897 € *
Available: 0 mtr.
Available in 5 Days: 100 mtr.
Leadtime: 6 Weeks **
Halogen-free control cable, 13436, HELUKABEL
For fixed installation or flexible application, with free movements without forcing which do not constantly recur and without tensile stress, for high mechanical strain. As a measuring and control cable primarily in machinery and plant construction, in air-conditoning systems, at the warehouse and conveyor systems, in ship-building and in the renewable energies such as in the construction of wind power stations.
FEATURES
- Halogen-free
- Flame-retardant
- Oil-resistant
- Ozone-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: Polymer
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Version | Steuerleitung | |
| Number of cores | 5 | |
| Cable cross-section | 2,5 mm² | |
| AWG cross-section | AWG 14 | |
| Colour | grau | |
| Material | Polymer | |
| Outer diameter | 10.2 mm | |
| Shielding | ungeschirmt | |
| Halogen free | Yes | |
| Protective conductor available | Yes | |
| Cable material | Kupfer, blank | |
| Conductor category | Kl.5 = feindrähtig | |
| Core insulation material | Polymer | |
| Core colour sequence | schwarz | |
| Drag chain suitable | No | |
| Standard number | UL, CSA | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Rated voltage UL/CSA | 600 V | |
| Temperature range (unmoved) | -40 °C bis 80 °C | |
| Temperature range (active) | -30 °C bis 80 °C | |
| Test voltage | 3 kV |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
