16105 | HELUKABEL
PVC control line F-CY-OZ (LiY-CY) 3 x 4.0 mm², AWG 12, shielded, gray, 16105
Unit Price (€ / mtr.)
4.9147 € *
Available: 0 mtr.
Leadtime: On Request **

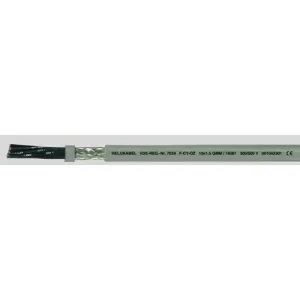

Connection cable, 16105, HELUKABEL
The 16105 is a connection cable for flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not outside; to be used as control and connecting cable in control and regulation technology, in the tool and machine building industry, in computer systems, as well as a signal cable in the electronic industry. A stabilizing foil separator between wire bound and braid reduces the outer diameter essentially and allows for smaller bending radius as well as lower weights. The disturbance free transmission of signals and impulses is ensured due to the high degree of screening.
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 3 | |
| Version | control line | |
| Outer diameter | 11.1 mm | |
| AWG cross-section | AWG 12 | |
| Colour | gray | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 4.0 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 4 kV | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Temperature range (active) | -10 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
