21666 | HELUKABEL
PUR control line HELUCHAIN MULTIFLEX 512-C-PUR UL/CSA 2 x 1.5 mm², AWG 16, shielded, gray, 21666
Unit Price (€ / mtr.)
8.3776 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

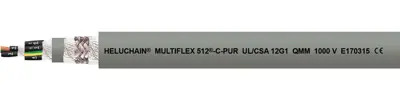

Drag chain cable, 21666, HELUKABEL
The 21666 is a drag chain cable for use in machine and tool manufacturing, in robotics and in other constantly moving machine parts; for permanently flexible applications moving freely without tensile stress and without movement control in dry, damp and wet rooms as well as outdoors. A slippery PP core insulation, cut-resistance and a low-adhesion PUR outer sheath guarantee an optimum durability and excellent cost-efficiency.
Technical specifications
| Aderisolationsmaterial | TPE | |
| Anzahl der Adern | 2 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 9.9 mm | |
| AWG-Leiterquerschnitt | AWG 16 | |
| Farbe | grau | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,5 mm² | |
| Material | PUR | |
| Nennspannung UL/CSA | 1000 V | |
| Norm | UL, CSA | |
| Prüfspannung | 3 kV | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | Yes | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -30 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 90 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
