PUR control line HELUCHAIN MULTIFLEX 512-C-PUR UL/CSA 3 G 1.5 mm², AWG 16, shielded, gray, 21667
Unit Price (€ / mtr.)
9.6033 € *
Available: 0 mtr.
Available in 5 Days: 100 mtr.
Leadtime: 6 Weeks **

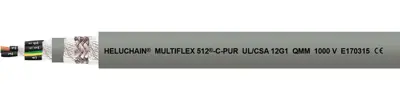

Drag chain cable, 21667, HELUKABEL
The 21667 is a drag chain cable for use in machine and tool manufacturing, in robotics and in other constantly moving machine parts; for permanently flexible applications moving freely without tensile stress and without movement control in dry, damp and wet rooms as well as outdoors. A slippery PP core insulation, cut-resistance and a low-adhesion PUR outer sheath guarantee an optimum durability and excellent cost-efficiency.
Technical specifications
| Core insulation material | TPE | |
| Number of cores | 3 | |
| Version | Steuerleitung | |
| Outer diameter | 10.3 mm | |
| AWG cross-section | AWG 16 | |
| Colour | grau | |
| Halogen free | Yes | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 1,5 mm² | |
| Material | PUR | |
| Rated voltage UL/CSA | 1000 V | |
| Standard number | UL, CSA | |
| Test voltage | 3 kV | |
| Shielding | geschirmt | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Temperature range (active) | -30 °C bis 90 °C | |
| Temperature range (unmoved) | -40 °C bis 90 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
