23087 | HELUKABEL

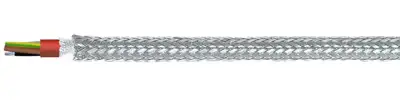

Silicone connection cable SiHF/GL-P 4 G 2.5 mm², AWG 14, shielded, red brown, 23087
Unit Price (€ / mtr.)
11.2217 € *
Available: 0 mtr.
Leadtime: On Request **
Connecting cable, 23087, HELUKABEL
Silicone control and connection cable for use wherever insulation is subjected to extreme temperature changes. The good performance of the environmental resistant properties means that the silicone cable can be used at temperatures down to -60°C. This product is halogen-free and is especially suited for installation in power stations. It has also found its use in the steel producing industries, aviation industry, ship building as well as in ceramic, glass and cement factories. Only suitable for use in dry conditions.
Features
- High flash point
- Leaves an insulating layer of SiO2 when exposed to flames
- No significant changes in dielectric strength and insulation resistance even at higher temperature
Technical specifications
| Aderisolationsmaterial | Silikon | |
| Anzahl der Adern | 4 | |
| Ausführung | Anschlussleitung | |
| Außendurchmesser | 11.7 mm | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Farbe | rotbraun | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | Silikon | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2 kV | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 180 °C | |
| Temperaturbereich (unbewegt) | -60 °C bis 180 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
