24140 | HELUKABEL

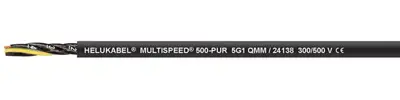

PUR connection line MULTISPEED 500-PUR 12 G 1.0 mm², AWG 18, unshielded, black, 24140
Unit Price (€ / mtr.)
10.6148 € *
Available: 0 mtr.
Leadtime: On Request **
Connecting cable, 24140, HELUKABEL
PUR drag chain cable suitable for continuous operation with long travelling distance capabilities at high or low speeds in dry, damp and wet rooms, as well as outdoors. For applications where the highest demands are placed on flexibility and abrasion resistance, e.g. in energy supply chains, industrial robots, production lines, automation systems and on permanently moving machine parts for uninterrupted operation.
Features
- Highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
- Highly restistant to alternate bending strength
- Halogen-free
Technical specifications
| Core insulation material | PP | |
| Number of cores | 12 | |
| Version | connection line | |
| Outer diameter | 12 mm | |
| AWG cross-section | AWG 18 | |
| Colour | black | |
| Halogen free | Yes | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Material | PUR | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 3 kV | |
| Shielding | unshielded | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Temperature range (active) | -30 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
