24301 | HELUKABEL

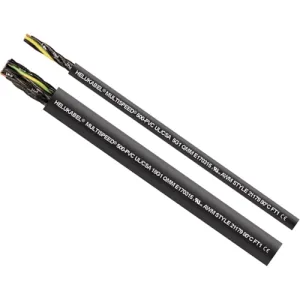

PVC connection cable MULTISPEED 500-PVC UL/CSA 18 G 0.5 mm², AWG 20, unshielded, black, 24301
Unit Price (€ / mtr.)
7.5803 € *
Available: 0 mtr.
Leadtime: On Request **
Connecting cable, 24301, HELUKABEL
This UL/CSA approved cable is used when extreme demands are placed on the cable. It designed for export-oriented mechanical engineers. Gearing toward the needs of the industry, materials and stranding techniques permit uninterrupted use as highly flexible drag chain cable with long travelling distance capabilities at high or low speeds. For installation in dry and damp rooms, as well as outdoors. With free movement, without tensile stress and without forced motion control capabilities, this cable is suitable for frequent lifting and bending stress in machine and tool construction.
Technical specifications
| Aderisolationsmaterial | PP | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 18 | |
| Ausführung | Anschlussleitung | |
| Außendurchmesser | 12.2 mm | |
| AWG-Leiterquerschnitt | AWG 20 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,5 mm² | |
| Material | PVC | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Nennspannung UL/CSA | 600 V | |
| Norm | UL, CSA | |
| Prüfspannung | 3 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | Yes | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 80 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
