26009 | HELUKABEL

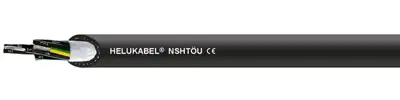

Rubber connection line NSHTÖU 3 G 2.5 mm², AWG 14, shielded, black, 26009

Order No.: 93F8255
EAN: 4060892170638
MPN:
26009
Series: NSHTÖU
HELUKABEL
26009 HELUKABEL Control Cables
Image may differ
Unit Price (€ / mtr.)
9.0916 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
9.09 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
9.0916 €

Connecting cable, 26009, HELUKABEL

Reeling cable is used for applications involving high mechanical stress, especially for applications requiring frequent winding and unwinding with simultaneous tensile and torsional stress; for construction machinery, conveying and lifting equipment and crane systems. For use as a robust and weather resistant cable in roughest operations such as mobile transport equipment, railway engines and in mining. Suitable for installation in dry, damp and wet rooms as well as outdoors.

Features

  • Resistant to: oil, ozone, solvents, petrol, acids, chemicals, greases
  • Abrasion-resistant
  • For outdoor use
  • For horizontal reeling operations
Technical specifications
Core insulation material rubber
Number of cores 3
Version connection line
Outer diameter 16.3 mm
AWG cross-section AWG 14
Colour black
Halogen free No
Cable material copper, tin-plated
Cable cross-section 2.5 mm²
Material rubber
Rated voltage 1 kV
Rated voltage U0 600 V
Test voltage 2.5 kV
Shielding shielded
Drag chain suitable No
Protective conductor available Yes
Temperature range (active) -25 °C to 80 °C
Temperature range (unmoved) -40 °C to 80 °C
Logistics
Customs tariff number 85444995
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
