30764 | HELUKABEL

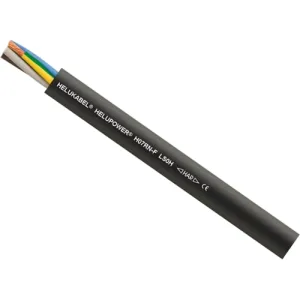

Rubber connection cable HELUPOWER H07RN-F LS0H 3 G 1.0 mm², AWG 18, unshielded, black, 30764
Unit Price (€ / mtr.)
1.9397 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Rubber connection cable, 30764, HELUKABEL
The 30764 halogen-free rubber sheathed cables for use with medium mechanical stress in dry, damp, wet rooms and outdoors. Can only be used in stagnant waters (also in salt water) up to a water depth of 100 m (AD8) and a water temperature of min. +5°C. When installed in pipes or similar closed systems, the use of the cable is permitted up to and including 1000 V AC voltage or up to 750 V DC voltage against earth.
Features
- Resistant to: oil, UV radiation, ozone, weathering effects, lubricating oils, greases
- Halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 /IEC 60754-1
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2
- Certifications and approvals: HAR EAC
Technical specifications
| Core insulation material | Gummi | |
| Number of cores | 3 | |
| Version | Anschlussleitung | |
| Outer diameter | 9.7 mm | |
| AWG cross-section | AWG 18 | |
| Colour | schwarz | |
| Halogen free | Yes | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 1,0 mm² | |
| Material | Gummi | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Test voltage | 2.5 kV | |
| Shielding | ungeschirmt | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C bis 90 °C | |
| Temperature range (unmoved) | -50 °C bis 90 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
