37002 | HELUKABEL
Rubber connection line H07RN-F 1 x 2.5 mm², AWG 14, unshielded, black, 37002
Unit Price (€ / mtr.)
1.0472 € *
Available: 0 mtr.
Leadtime: On Request **

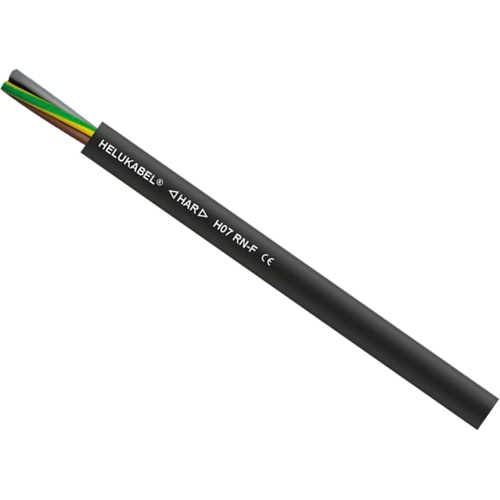

Rubber connection cable, 37002, HELUKABEL
The 37002 heavy duty, rubber sheathed cable for use with medium mechanical stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating plates, hand lamps, electric tools such as drills or circular saws. For fixed installation on plaster as well as in temporary constructions.
Features
- Resistant to: oil, weathering effects
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- Certifications and approvals: H07RN-F: HAR EAC
Technical specifications
| Core insulation material | rubber | |
| Core colour sequence | black | |
| Number of cores | 1 | |
| Version | connection line | |
| Outer diameter | 7.9 mm | |
| AWG cross-section | AWG 14 | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 2.5 mm² | |
| Material | rubber | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Test voltage | 2.5 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Temperature range (active) | -25 °C to 60 °C | |
| Temperature range (unmoved) | -30 °C to 60 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
