37005 | HELUKABEL
Rubber connection cable H07RN-F 1 x 10 mm², AWG 8, unshielded, black, 37005
Unit Price (€ / mtr.)
3.3796 € *
Available: 0 mtr.
Leadtime: On Request **

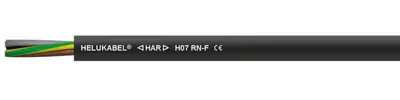

Rubber connection cable, 37005, HELUKABEL
The 37005 heavy duty, rubber sheathed cable for use with medium mechanical stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating plates, hand lamps, electric tools such as drills or circular saws. For fixed installation on plaster as well as in temporary constructions.
Features
- Resistant to: oil, weathering effects
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- Certifications and approvals: H07RN-F: HAR EAC
Technical specifications
| Aderisolationsmaterial | Gummi | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 1 | |
| Ausführung | Anschlussleitung | |
| Außendurchmesser | 11.9 mm | |
| AWG-Leiterquerschnitt | AWG 8 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 10 mm² | |
| Material | Gummi | |
| Nennspannung | 750 V | |
| Nennspannung U0 | 450 V | |
| Prüfspannung | 2.5 kV | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -25 °C bis 60 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 60 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
