37044 | HELUKABEL

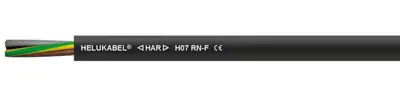

Rubber connection line H07RN-F 4 G 1.0 mm², AWG 18, unshielded, black, 37044
Unit Price (€ / mtr.)
2.3919 € *
Available: 100 mtr.
Leadtime: On Request **
Total Price:
2.39 € *
Price list
Quantity
Price per unit*
1 mtr.
2.3919 €
10 mtr.
2.1896 €
50 mtr.
2.0706 €
100 mtr.
1.9397 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rubber connection cable, 37044, HELUKABEL
The 37044 heavy duty, rubber sheathed cable for use with medium mechanical stress in dry, damp, wet rooms, in agricultural premises and outdoors. Suitable for equipment in commercial operations, e.g. heating plates, hand lamps, electric tools such as drills or circular saws. For fixed installation on plaster as well as in temporary constructions.
Features
- Resistant to: oil, weathering effects
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- Certifications and approvals: H07RN-F: HAR EAC
Technical specifications
| Core insulation material | rubber | |
| Number of cores | 4 | |
| Version | connection line | |
| Outer diameter | 11.9 mm | |
| AWG cross-section | AWG 18 | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Material | rubber | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Test voltage | 2.5 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -25 °C to 60 °C | |
| Temperature range (unmoved) | -30 °C to 60 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
