37100 | HELUKABEL
EPR submersible pump line Tauchflex-R 1 x 1.5 mm², AWG 16, unshielded, blue, 37100
Unit Price (€ / mtr.)
2.3324 € *
Available: 0 mtr.
Leadtime: On Request **

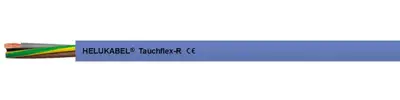

Submersible pump cable, 37100, HELUKABEL
Tauchflex-R is a special cable for use as a connecting and control cable for submersible motor pumps, underwater floodlights, floating switch and has proven its worth for constant use in drinking water, process water and service water up to an immersion depth of 300 m. Tauchflex-R can also be installed for use in dry, damp and humid areas as well as in the open air.
Features
- Good insulation properties when submerged in water
- Minimal weight gain under water
- The mechanical stability of the insulation materials remains constant even when submerged
Technical specifications
| Core insulation material | EPR | |
| Number of cores | 1 | |
| Version | submersible pump line | |
| Outer diameter | 6 mm | |
| AWG cross-section | AWG 16 | |
| Colour | blue | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| Material | EPR | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Test voltage | 2.5 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Temperature range (active) | -25 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
