38012 | HELUKABEL

Rubber Sheathed cable NSSHÖU 3 G 1.5 mm², unshielded, yellow, 38012

Order No.: 93F8196
EAN: 4060892166761
MPN:
38012
Series: NSSHÖU
HELUKABEL
38012 HELUKABEL Control Cables
Image may differ
Unit Price (€ / mtr.)
3.7723 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
3.77 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
3.7723 €

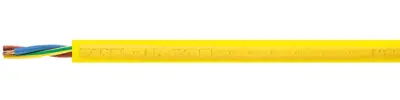

Rubber cable, 38012, HELUKABEL

Rubber cable is suited as a connecting cable for very high mechanical stress in underground mining and tools for use in industries and outdoor use. It is also used for mining industry, surface mining, stone-pits, on building sites, outdoors as well as indoors. Suitable for fixed installation on plaster in dry, damp and wet areas. A long duration of life is guaranteed under extreme operating conditions. The insulation of a plastic-rubber compound on EPR basis improves the resistance to ozone in order to avoid the formation of cracks due to ozone and insulation damages in switch-boards.

Features

  • Ozone resistance
  • High insulation resistance
  • Resistant against hot penetration
  • Low abrasion
  • High notch resistant
Technical specifications
Core insulation material rubber
Number of cores 3
Version Sheathed cable
Outer diameter 15 mm
Colour yellow
Halogen free No
Conductor category CL.5 = fine stranded
Cable material copper, tin-plated
Cable cross-section 1.5 mm²
Material rubber
Rated voltage 1 kV
Rated voltage U0 600 V
Test voltage 3 kV
Shielding unshielded
Drag chain suitable No
Protective conductor available Yes
Temperature range (active) -25 °C to 80 °C
Temperature range (unmoved) -40 °C to 80 °C
Logistics
Customs tariff number 85444995
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
