51767 | HELUKABEL

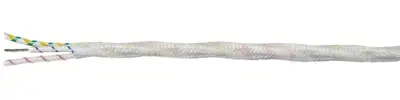

Glass silk connection cable HELUTHERM 400-MULTI 4 G 2.5 mm², AWG 14, white, 51767
Unit Price (€ / mtr.)
26.2633 € *
Available: 0 mtr.
Leadtime: On Request **
Connecting cable, 51767, HELUKABEL
Control and connection cable for applications with extremely high connection and ambient temperatures, e.g. in metallurgical, steel and rolling mills, foundries, glass and ceramics factories, furnace and power plant construction, thermoplastic forming; use only in dry environments.
Features
- Halogen-free
- Asbestos-free
- Cadmium-free
Technical specifications
| Aderisolationsmaterial | Glasseide | |
| Anzahl der Adern | 4 | |
| Ausführung | Anschlussleitung | |
| Außendurchmesser | 9.6 mm | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Farbe | weiß | |
| Halogenfrei | Yes | |
| Leitermaterial | Kupfer, vernickelt | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | Glasseide | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2 kV | |
| Schleppkettentauglich | No | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (unbewegt) | -60 °C bis 400 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
