52039 | HELUKABEL

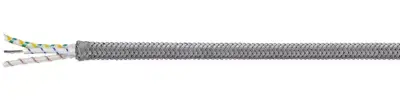

Glass silk connection line HELUTHERM 400-MULTI-ES 5 G 1.5 mm², AWG 16, white, 52039
Unit Price (€ / mtr.)
45.4580 € *
Available: 0 mtr.
Leadtime: On Request **
Connecting cable, 52039, HELUKABEL
Control and connection cable for applications with extremely high connection and ambient temperatures, e.g. in metallurgical, steel and rolling mills, foundries, glass and ceramics factories, furnace and power plant construction, thermoplastic forming; use only in dry environments.
Features
- Halogen-free
- Asbestos-free
- Cadmium-free
Technical specifications
| Core insulation material | glass silk | |
| Number of cores | 5 | |
| Version | connection line | |
| Outer diameter | 10.6 mm | |
| AWG cross-section | AWG 16 | |
| Colour | white | |
| Halogen free | Yes | |
| Cable material | copper, nickel-plated | |
| Cable cross-section | 1.5 mm² | |
| Material | glass silk | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (unmoved) | -60 °C to 400 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
