85246 | HELUKABEL
PUR Spiral cable 3 G 0.75 mm², AWG 18, unshielded, orange, 85246
Order No.: 93F7509
EAN: 4060892334764
MPN:
85246
Unit Price (€ / pc.)
117.1555 € *
Available: 0 pcs.
Leadtime: On Request **

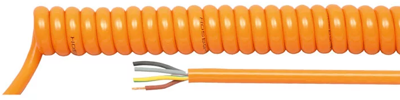

Spiral cable, 85246, HELUKABEL
The 85246 is an orange spiral cable with outer sheath of PUR and core insulation of rubber.
Applications
- Machine construction
- Electrical tools
- Building industry
- Handling equipment
- Entertainment equipment
- Medical devices
- Measurement instruments
- Rolling doors
Technical specifications
| Core insulation material | rubber | |
| Number of cores | 3 | |
| Version | Spiral cable | |
| Outer diameter | 25.2 mm | |
| AWG cross-section | AWG 18 | |
| Colour | orange | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.75 mm² | |
| Material | PUR | |
| Rated voltage | 500 V | |
| Test voltage | 2 kV | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (unmoved) | -25 °C to 70 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
