89921 | HELUKABEL

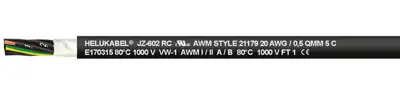

PVC control line JZ-602-RC 5 G 1.5 mm², AWG 16, shielded, black, 89921
Unit Price (€ / mtr.)
4.1888 € *
Available: 0 mtr.
Leadtime: On Request **
Drag chain cable, 89921, HELUKABEL
The 89921 is a PVC drag chain cable for installation in dry, damp and wet rooms, as well as outdoors with free movement, without tensile stress and without forced motion control. Suitable for frequent lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. RC = Robotics Cable.
Features
- Resistant to UV radiation
- Largely resistant to acids, alkalis, at room temperature
- Low adhesion
- For outdoor use
Technical specifications
| Core insulation material | PP | |
| Number of cores | 5 | |
| Version | control line | |
| Outer diameter | 8.7 mm | |
| AWG cross-section | AWG 16 | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| Material | PVC | |
| Rated voltage UL/CSA | 1000 V | |
| Test voltage | 3 kV | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Temperature range (active) | -5 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
