89970 | HELUKABEL

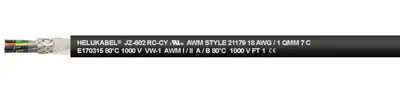

PVC control line JZ-602-RC-CY 4 G 1.5 mm², AWG 16, shielded, black, 89970
Unit Price (€ / mtr.)
6.1523 € *
Available: 0 mtr.
Leadtime: On Request **
Drag chain cable, 89970, HELUKABEL
The 89970 is a PVC drag chain cable for installation in dry, damp and wet rooms, as well as outdoors with free movement, without tensile stress and without forced motion control. Suitable for frequent lifting and bending stress in machine and tool construction, robotics, and in permanently moving machine parts. Due to the high screening density, interference-free transmission of signals or pulses is ensured.
Features
- Resistant to UV radiation
- Largely resistant to acids, alkalis, at room temperature
- Low adhesion
- For outdoor use
Technical specifications
| Aderisolationsmaterial | PP | |
| Anzahl der Adern | 4 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 8.7 mm | |
| AWG-Leiterquerschnitt | AWG 16 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,5 mm² | |
| Material | PVC | |
| Nennspannung UL/CSA | 1000 V | |
| Prüfspannung | 3 kV | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | Yes | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
