20102 | HELUKABEL
PVC computer cable, 16-wire, 0.5 mm², AWG 20, black, 20102
Unit Price (€ / mtr.)
5.6763 € *
Available: 0 mtr.
Leadtime: On Request **

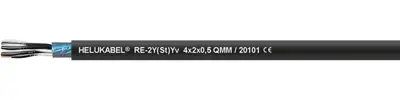

Computer cable, 20102, HELUKABEL
This instrumentation cable is used in data processing and process control. Low level of line attenuations and low mutual capacitances enable long transmission distances and fast pulse acceleration. Instrumentation cable is suitable for fixed installations in damp locations, in open spaces and for underground laying.
Technical specifications
| Aderisolationsmaterial | PE | |
| Anzahl der Adern | 16 | |
| Ausführung | Rechnerkabel | |
| Außendurchmesser | 13.2 mm | |
| AWG-Leiterquerschnitt | AWG 20 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,5 mm² | |
| Material | PVC | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -5 °C bis 50 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 70 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
