20193 | HELUKABEL
PVC data cable, 32-wire, 0.5 mm², AWG 20, blue, 20193
Unit Price (€ / mtr.)
8.5799 € *
Available: 0 mtr.
Leadtime: On Request **

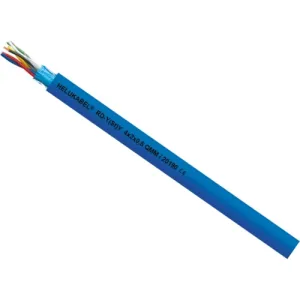

Data cable, 20193, HELUKABEL
This RD data transmission cable is used in measurement and control technology, as well as in control stations of industrial plants. The cable is used for the transmission of analogue and digital signals up to a frequency of approximately 10 kHz. Also is suitable for fixed installations inside buildings.
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 32 | |
| Version | data cable | |
| Outer diameter | 12.1 mm | |
| AWG cross-section | AWG 20 | |
| Colour | blue | |
| Halogen free | No | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² | |
| Material | PVC | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Temperature range (active) | -5 °C to 50 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
