20200 | HELUKABEL

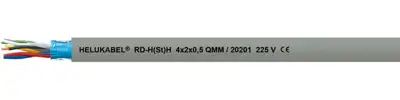

Polymer data cable, 4-wire, 0.5 mm², AWG 20, gray, 20200
Unit Price (€ / mtr.)
1.6065 € *
Available: 0 mtr.
Leadtime: On Request **
Data cable, 20200, HELUKABEL
The 20200 is a halogen-free data transmission cable used in measurement and control technology for the transmission of digital and analogue signals up to a frequency of 10 kHz. This cable is used inside buildings and outdoors, however, not without UV protection.
Technical specifications
| Aderisolationsmaterial | Polymer | |
| Anzahl der Adern | 4 | |
| Ausführung | Datenleitung | |
| Außendurchmesser | 7 mm | |
| AWG-Leiterquerschnitt | AWG 20 | |
| Farbe | grau | |
| Halogenfrei | Yes | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,5 mm² | |
| Material | Polymer | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -5 °C bis 50 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 70 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
