83375 | HELUKABEL

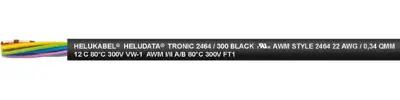

PVC data cable, 2-wire, 0.34 mm², AWG 22, black, 83375
Unit Price (€ / mtr.)
0.8211 € *
Available: 0 mtr.
Leadtime: On Request **
Data cable, 83375, HELUKABEL
UL-/CSA-approved, flexible data cable for use as a signal and measuring cable in machine tools, assembly lines, conveyor belts, plant construction, air conditioning devices, metallurgical plants, steel mills.
Features
- Resistant to: oil, solvents, acids, alkalis
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 2 | |
| Version | data cable | |
| Outer diameter | 4.1 mm | |
| AWG cross-section | AWG 22 | |
| Colour | black | |
| Halogen free | No | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.34 mm² | |
| Material | PVC | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Temperature range (active) | -10 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
