83830 | HELUKABEL
PVC data cable, 6-wire, 0.56 mm², AWG 20, gray, 83830
Unit Price (€ / mtr.)
5.0218 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

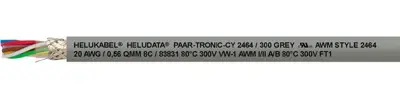

Data cable, 83830, HELUKABEL
UL/CSA approved, screened, twisted pair data cable for use as a signal and measuring cable in machine tools, assembly lines, conveyor belts, plant construction, air conditioning devices, metallurgical plants, steel mills.
Features
- Resistant to: oil, solvents, acids, alkalis
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 6 | |
| Version | Datenkabel | |
| Outer diameter | 7.7 mm | |
| AWG cross-section | AWG 20 | |
| Colour | grau | |
| Halogen free | No | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,56 mm² | |
| Material | PVC | |
| Shielding | geschirmt | |
| Drag chain suitable | No | |
| Temperature range (active) | -10 °C bis 80 °C | |
| Temperature range (unmoved) | -40 °C bis 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
