83929 | HELUKABEL

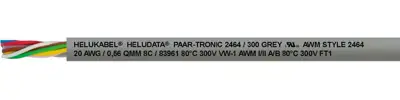

PVC data cable, 16-wire, 0.23 mm², AWG 24, gray, 83929
Unit Price (€ / mtr.)
3.9746 € *
Available: 0 mtr.
Leadtime: On Request **
Data cable, 83929, HELUKABEL
UL/CSA approved, twisted pair data cable for use as a signal and measuring cable in machine tools, assembly lines, conveyor belts, plant construction, air conditioning devices, metallurgical plants, steel mills.
Features
- Resistant to: oil, solvents, acids, alkalis
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 16 | |
| Version | data cable | |
| Outer diameter | 8.4 mm | |
| AWG cross-section | AWG 24 | |
| Colour | gray | |
| Halogen free | No | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.23 mm² | |
| Material | PVC | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Temperature range (active) | -10 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
