805666 | HELUKABEL
FO cable, singlemode 9/125 µm, fibers: 24, G657, PE, black, 805666
Unit Price (€ / mtr.)
1.0234 € *
Available: 0 mtr.
Leadtime: On Request **

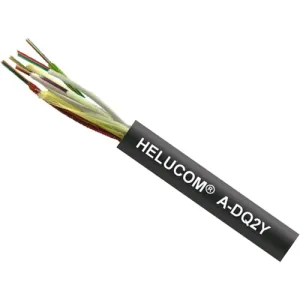

FO cable, 805666, HELUKABEL
This micro fibre-optic cable is characterized by a design that is slim but robust. Around stranded tubes, there is a composite of swelling material with characteristics that ensure the strain relief, and waterproofing in longitudinal direction of the cable. Another featrure of these cables is the low adhesion of the outer jacket. Therefore this cables can be blowing into microducts. A typical application is FTTx within communal infrastructure projects.
Technical specifications
| Number of fibres | 24 | |
| Outer diameter | 5.8 mm | |
| Colour | black | |
| Chamfer type | singlemode 9/125 µm | |
| Halogen free | Yes | |
| Category | G657 | |
| Material | PE | |
| Temperature range (active) | -30 °C to 70 °C | |
| Temperature range (unmoved) | -5 °C to 50 °C |
Download
Logistics
| Customs tariff number | 85447000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
