15903 | HELUKABEL
PVC-stranded wire, highly flexible, LifY, 4.0 mm², blue, outer Ø 4.9 mm, 15903
Unit Price (€ / mtr.)
4.2126 € *
Available: 80 mtr.
Available in 5 Days: 1,600 mtr.
Leadtime: 6 Weeks **
Total Price:
4.21 € *
Price list
Quantity
Price per unit*
1 mtr.
4.2126 €
10 mtr.
3.6533 €
100 mtr.
3.2249 €
500 mtr.
2.8084 €
1000 mtr.
2.5228 €
*incl. VAT plus shipping costs
**Subject to prior sale

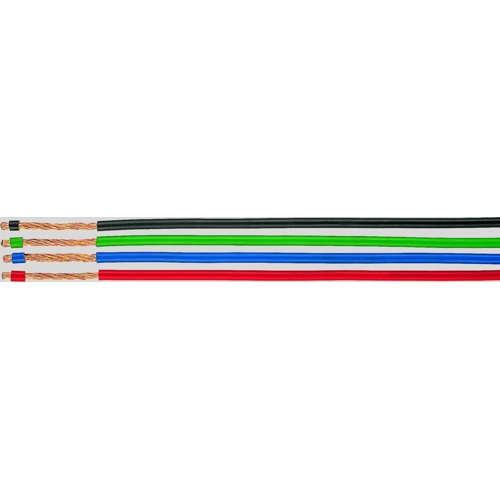

Stranded wire, 15903, HELUKABEL
The 15903 is a highly flexible single core for connections in switch cabinet construction, measurement set-ups in laboratories, engineering and technical trainings as well as other applications that require increased bending properties. The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.
Features
- Flame-retardant
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 4.9 mm | |
| Colour | blau | |
| Halogen free | No | |
| Cable structure | 512 x 0,1 mm | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 4,0 mm² | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Standard number | EN 50525-1 | |
| Test voltage | 3 kV | |
| Temperature range (active) | -15 °C bis 80 °C | |
| Temperature range (unmoved) | -30 °C bis 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
