23813 | HELUKABEL
Silicone-switching strand, halogen free, SiF, 4.0 mm², green-yellow, outer Ø 4.2 mm, 23813
Unit Price (€ / mtr.)
1.5351 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
1.54 € *
Price list
Quantity
Price per unit*
100 mtr.
1.5351 €
500 mtr.
1.4042 €
1000 mtr.
1.2614 €
*incl. VAT plus shipping costs
**Subject to prior sale

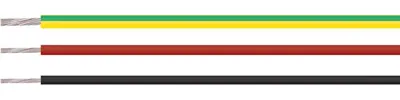

Slicone single core, 23813, HELUKABEL
The 23813 is a temperature resistant silicone single core for use in iron, steel and rolling mills, foundries, cement, glass and ceramic factories as well as in aircraft construction and ship building.
Features
- Finely stranded
- Tinned wire
- Increased temperature resistance
- Halogen-free
- High flash point
Technical specifications
| Aderisolationsmaterial | Silikon | |
| Außendurchmesser | 4.2 mm | |
| Farbe | grün-gelb | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 4,0 mm² | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Norm | VDE 0250 | |
| Prüfspannung | 2 kV | |
| Temperaturbereich (bewegt) | -25 °C bis 180 °C | |
| Temperaturbereich (unbewegt) | -60 °C bis 180 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
