28784 | HELUKABEL
PVC-switching wire, H05V-U, 1.0 mm², purple, outer Ø 2.7 mm, 28784
Unit Price (€ / mtr.)
0.4046 € *
Available: 100 mtr.
Leadtime: On Request **
Total Price:
40.46 € *
Price list
Quantity
Price per unit*
100 mtr.
0.4046 €
500 mtr.
0.3689 €
1000 mtr.
0.3451 €
5000 mtr.
0.3213 €
*incl. VAT plus shipping costs
**Subject to prior sale

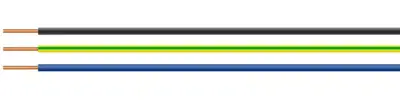

PVC single core, 28784, HELUKABEL
The 28784 is a PVC single core for installation in electrical conduits, on and under plaster, but only for signal and control circuits. Suitable for protected and fixed installation in appliances and luminaires. The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 2.7 mm | |
| Colour | purple | |
| Halogen free | No | |
| Conductor category | CL.1 = stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Temperature range (active) | 5 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 80 °C | |
| Bending radius unmoved | 9.2 mm |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
