45703 | HELUKABEL

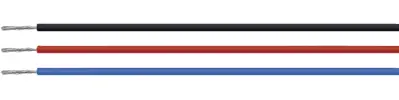

Silicone-switching strand, halogen free, SiFF, 4.0 mm², blue, outer Ø 4.4 mm, 45703
Unit Price (€ / mtr.)
8.0682 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
8.07 € *
Price list
Quantity
Price per unit*
100 mtr.
8.0682 €
500 mtr.
7.5565 €
*incl. VAT plus shipping costs
**Subject to prior sale
Silicone single core, 45703, HELUKABEL
The 45703 is a special single core for use in high, resp. low temperature areas. It is used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glas and ceramic factories. As this single cores are halogen-free, especially suited for use in power stations.
Technical specifications
| Aderisolationsmaterial | Silikon | |
| Außendurchmesser | 4.4 mm | |
| Farbe | blau | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 4,0 mm² | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2 kV | |
| Temperaturbereich (bewegt) | -25 °C bis 180 °C | |
| Temperaturbereich (unbewegt) | -60 °C bis 180 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
