Switching strand, halogen free, HELUTHERM 400, 1.0 mm², beige, outer Ø 2.7 mm, 50940
Unit Price (€ / mtr.)
4.4030 € *
Available: 0 mtr.
Leadtime: On Request **

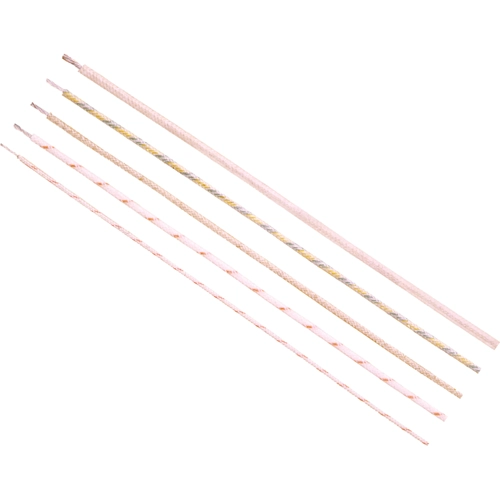

Stranded wire, 50940, HELUKABEL
The 50940 is a special core with isolation that has a wide temperature range that is especially suited for use in the aviation and aerospace industry, for atomic power stations and in the steel making and chemical industries.
Features
- Stranded nickel conductor
- Overlapping with special heat-resistant impregnation
- This cable has a very good electronic, chemical and radiation resistant properties
Technical specifications
| Außendurchmesser | 2.7 mm | |
| Farbe | beige | |
| Halogenfrei | Yes | |
| Leiteraufbau | 32 x 0,2 mm | |
| Leiterklasse | Kl.2 = mehrdrähtig | |
| Leitermaterial | Nickel | |
| Leiterquerschnitt | 1,0 mm² | |
| Nennspannung | 500 V | |
| Prüfspannung | 2 kV | |
| Temperaturbereich (bewegt) | -5 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -60 °C bis 400 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
