51816 | HELUKABEL
Polyolefine-switching strand, halogen free, H07Z-K, 16 mm², brown, outer Ø 8.4 mm, 51816
Unit Price (€ / mtr.)
6.9496 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
6.95 € *
Price list
Quantity
Price per unit*
100 mtr.
6.9496 €
500 mtr.
6.2951 €
*incl. VAT plus shipping costs
**Subject to prior sale

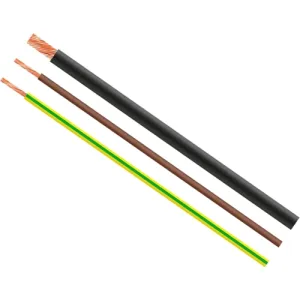

Single core, 51816, HELUKABEL
The 51816 is a halogen-free single core for applications that require a low development of smoke and corrosive gases in case of fire. Used for internal wiring of devices and for connecting luminaires. For installation in electrical pipes on and under plaster; but only for signal and control circuits. The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.
Technical specifications
| Core insulation material | polyolefine | |
| Outer diameter | 8.4 mm | |
| Colour | brown | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 16 mm² | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Test voltage | 2.5 kV | |
| Temperature range (active) | -5 °C to 90 °C | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Bending radius unmoved | 42 mm |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
