63334 | HELUKABEL

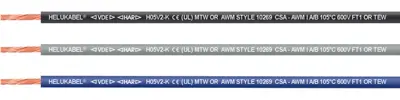

PVC-switching strand, FÜNFNORM H05V2-K, 1.0 mm², AWG 18, dark blue-orange, outer Ø 2.8 mm, 63334
Unit Price (€ / mtr.)
0.4760 € *
Available: 0 mtr.
Leadtime: On Request **
Single core, 63334, HELUKABEL
The 63334 is a PVC single core with five norms connecting jumper wire primarily, designed for exportes, used in machine tools. The approbation of HAR, UL-AWM, UL-MTW, CSA-AWM, CSA-Equipment-wire make possible an economical storekeeping and simplification of parts list.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 2.8 mm | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Farbe | dunkelblau-orange | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,0 mm² | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2 kV | |
| Temperaturbereich (bewegt) | 5 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 90 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
