63404 | HELUKABEL

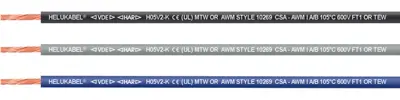

PVC-switching strand, FÜNFNORM H05V2-K, 0.5 mm², AWG 22, dark blue-white, outer Ø 2.5 mm, 63404
Unit Price (€ / mtr.)
0.357 € *
Available: 0 mtr.
Leadtime: On Request **
Single core, 63404, HELUKABEL
The 63404 is a PVC single core with five norms connecting jumper wire primarily, designed for exportes, used in machine tools. The approbation of HAR, UL-AWM, UL-MTW, CSA-AWM, CSA-Equipment-wire make possible an economical storekeeping and simplification of parts list.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 2.5 mm | |
| AWG cross-section | AWG 22 | |
| Colour | dark blue-white | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Temperature range (active) | 5 °C to 90 °C | |
| Temperature range (unmoved) | -40 °C to 90 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
